The pulse oximeter is intended for continuously monitoring, spot checking, displaying, storing and transferring oxygen saturation and pulse rate of single adult, pediatric and neonatal patients in hospitals, emergency treatment, patient transport and home care.

Technical Specifications

Display: 2.4“ color TFT
Resolution: 320 x 240
Multi displays selectable: standard or waveform screen
Trace: 1 plethysmogram waveform
Indicator: alarm indicator light, power indicator light, pulse tone, alarm sound, button tones
Interface: dual-purpose socket for connecting SpO2 sensor and communication cable IR interface: infrared link allows downloading realtime patient data to computer
DC power interface: Charger stand for Li-ion battery
DC power requirements: input voltage 5V DC Power 1.2A
Battery:
- Li-ion battery 24 hours continuous working
- 3xAA batteries 36 hours continuous working
Trend memory:
- Monitoring mode: Resolution: 2s - Maximum time: 96 h
- Spot-check mode: Review of up to 4000 data, measure up to 99 patients
Alarm: user adjustable high and low limits 3-level audible and visual alarm

SpO2

Measurement range: 0~100% ±2% (70~100%)
Resolution: 1% Alarm range: 50~100%
Refreshing rate: 1 s
Averaging time:
- 7 s (sensitivity set HIGH)
- 9 s (sensitivity set MED)
- 11 s (sensitivity set LOW)

Pulse rate

Range: 18~300 bpm
- (±3 bpm non-motion)
- (±5 bpm motion)
- Alarm range: 18~300 bpm
Resolution: 1 bpm
Refreshing rate: 1 s
Averaging time: same as SpO2
Type of protection: Class II with internal electric power supply
Degree of protection: BF (defibrillation proof)
Protection against ingress of liquid: 1P x 2

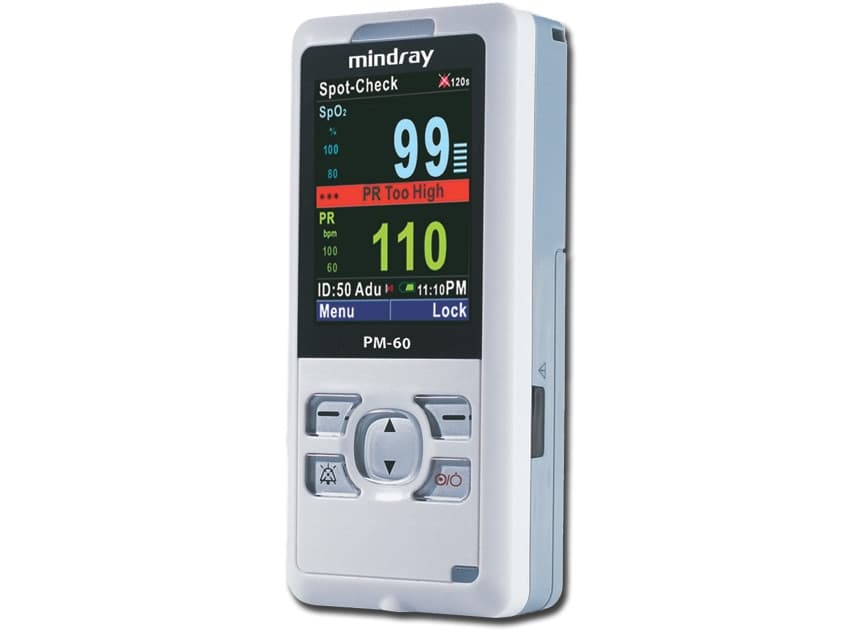

PM60 Mindray Pulse Oximeter with Adult Sensor / Alarm

Overview
