Precise Temperature Control: Maintains stable internal temperatures between +2°C and +8°C with minimal fluctuations
Advanced Monitoring: Electronic controls and touch LED displays for real-time temperature adjustments
Data Logging and Connectivity: Integrated data loggers with Bluetooth and RS485 for easy temperature tracking via mobile apps
Efficient Cooling System: Fan-forced cooling with automatic defrost for consistent performance
Safety Alarms: Optical and acoustic alarms alert users to temperature deviations or power failure
Eco-Friendly Refrigerant: Uses R600a refrigerant, compliant with ecological standards
User-Friendly Design: Self-closing doors, LED lighting, and adjustable shelving for easy access and organization

Model	MD14DD	MD35DD	MD40DD
Gross Capacity	130L	350L	385L
Net Capacity (l)	100	240	290
Factory Temp. Setting (°C)	+5
Fluctuation (°C)	0.5
Gradient (°C)	2.9
Temp. +5°C to +10°C	40 min
Temp. +25°C to +5°C	40 min
Door Opening Recovery	8 min
Positive Temp. Deviation	+0.5	+1.3	+1.3
Negative Temp. Deviation	-1.4	-1.1	-1.1
Heat Output (kJ/h)	135	266	285
Ambient Temp. Range (°C)	+10 to +35
Noise (dB)	42	50	44
Refrigerant	R600a
Daily Energy (kWh/24h)	0.751	1.776	1.280
Annual Energy (kWh/year)	274	648	467
Voltage (V)	220–240
Frequency (Hz)	50
Self-Closing Door	Yes	No	Yes
Access Port	Yes
Calibration Block	Yes
Volt-Free Alarm Contact	Yes
Cooling System	Fan forced
Defrost	Automatic
Interior Light	LED ceiling	LED ceiling	Vertical LED strip
Warning Signal	Optical & Acoustic
Power Failure Alarm	12h	24h	24h
External Alarm System	Yes
Screen Alarm Indicator	Yes
Data Logger	Bluetooth App
Low Temp. Protection	Yes
No. of Shelves	2 + 2 bottom	5 + 1 bottom	5 + 1 bottom
Shelf Size (mm)	420x324 465x263 445x180	523x351 445x180	380x495 445x180
Max Load/Shelf (kg)	20	40	40
Shelf Material	Wire + white polymer
Side Wall Material	Steel, white painted
Inner Cabinet Material	HIPS polystyrene
Door Type	Double glass	2x Double glass	Double glass
Lock Type	Mechanical
Adjustable Front Feet	2
Rear Wheels	2
External Dimensions (mm)	870x560x620	1810x600x620	2025x600x620
Internal Dimensions (mm)	725x465x392	1518x502x453	1645x500x418

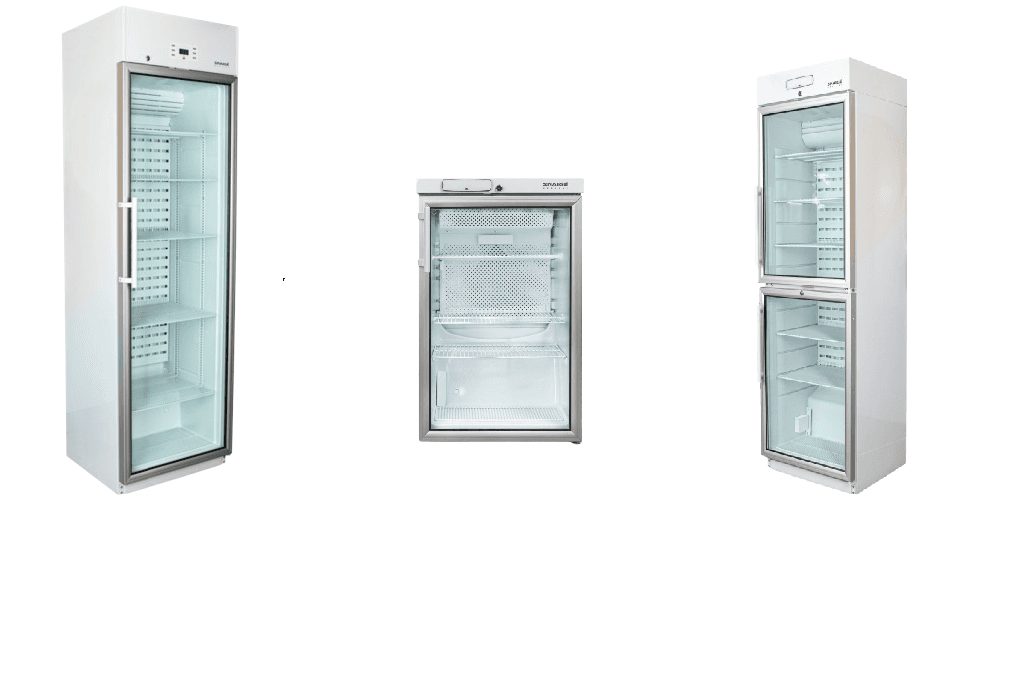

SNAIGE Medical 'Max Plus Line' Bluetooth Fridge

Overview
